OpenGraph Image Generation using Svelte with Satori
If your website is shared on social media like Facebook, Twitter, LinkedIn or Discord the platform renders a card as link. This is the first impression of your website. It is extremely important. But how can we as WebDeveloper decide how this card should look like?
This is when OpenGraph comes into play. OpenGraph defines some metadata that social
media platforms extract to render the link. Usually an image, a title and a description

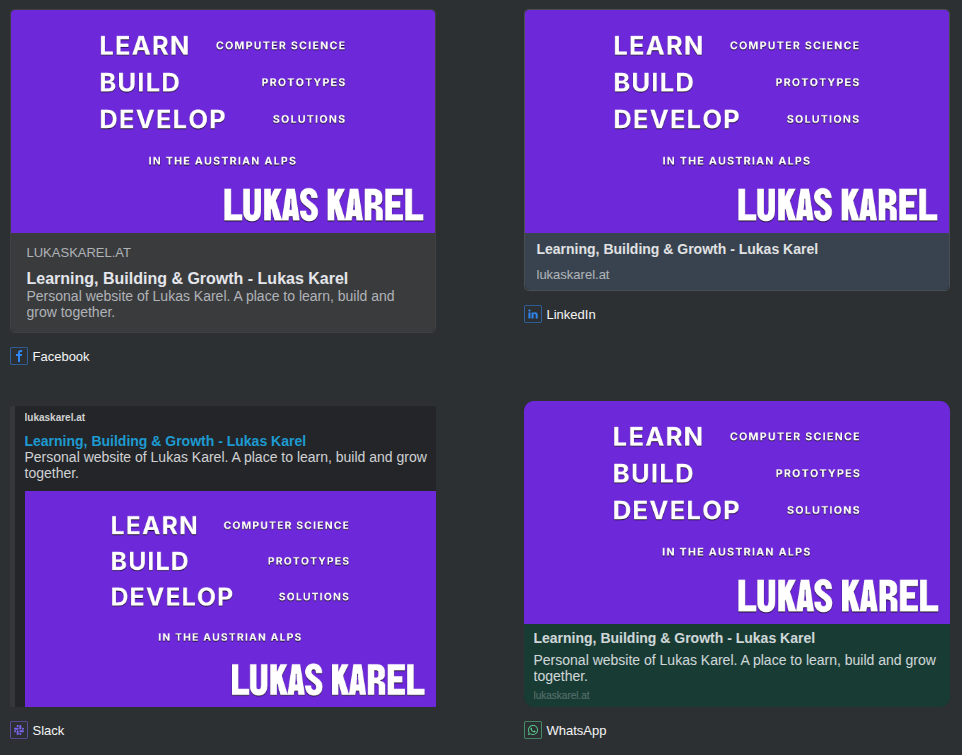

will be extracted. The next image shows you examples of social media links of my
website after my first implementation. These examples were generated using OrcaScan.
Adding OpenGraph Metadata to a Website
Adding the required information for social media sites is actually really easy.
We just need to add some <meta> tags into our <head> section of our
website. As an example look at the next code snippet. This is extracted from
my website.
You will see that twitter has defined its own meta tags. I just use
my default OpenGraph tags. I really don’t care much about twitter, tbh.
<head>
<meta property="og:url" content="https://lukaskarel.at/" />
<meta property="og:type" content="website" />
<meta property="og:title" content="Learning, Building & Growth - Lukas Karel" />
<meta property="og:description" content="Personal website of Lukas Karel. A place to learn, build and grow together." />
<meta property="og:image" content="https://lukaskarel.at/api/og/image/og.png" />
<meta property="twitter:card" content="summary_large_image" />
<meta property="twitter:url" content="https://lukaskarel.at/" />
<meta property="twitter:title" content="Learning, Building & Growth - Lukas Karel" />
<meta property="twitter:description" content="Personal website of Lukas Karel. A place to learn, build and grow together." />
</head>The most important part is the image in my opinion. It gets the largest part of the screen area. And as we all know: A picture is worth a thousand words. Therefore it is important to make sure that the link to the image works publicly. I would not recommend to use a link that you cant control. You cant be sure that I will be available forever. This is why I host these images with my website as static content.
My default OpenGraph image is hosted at https://lukaskarel.at/api/og/image/og.png.
This is a bit weird because it is part of an API? This is only weird until you know
that we could use different tags for each site of our website.
Therefore we are able to change the image based on the content of the shared resource.
Each blog post of my website has its unique image, title and description.
The next code section shows the meta tags of this post you currently looking at.
<head>
<meta property="og:type" content="website"/>
<meta property="og:url" content="https://lukaskarel.at/blog/opengraph-image-generation-using-sveltekit/"/>
<meta property="og:title" content="OpenGraph Image Generation using Svelte with Satori - Lukas Karel"/>
<meta property="og:description" content="Social media banners are extremely important. User decide within milliseconds whether the link is worthy of their time."/>
<meta property="og:image" content="https://lukaskarel.at/api/og/image/blog/opengraph-image-generation-using-sveltekit.png"/>
<meta property="og:site_name" content="LukasKarelAT"/>
<meta property="twitter:card" content="summary_large_image"/>
<meta property="twitter:url" content="https://lukaskarel.at/blog/opengraph-image-generation-using-sveltekit/"/>
<meta property="twitter:title" content="OpenGraph Image Generation using Svelte with Satori - Lukas Karel"/>
<meta property="twitter:description" content="Social media banners are extremely important. User decide within milliseconds whether the link is worthy of their time."/>
</head>Of course it would be possible to create each image own my own with photoshop or any other image editing program. But we are developer. We like automation. This is why I decided I want to create ONE template for all blog posts and automatically generate a new image for opengraph usage automatically as part of the build process of my website.
This is why https://lukaskarel.at/api/og/image/blog/opengraph-image-generation-using-sveltekit.png uses the same api /api/og/image but with a different resource.
Based on the requested resource I can decide how to generate
an image.
Create dynamic Images from Svelte Components with Satori
Satori is an Open Source Library by Vercel
to generate images from HTML code. I used svelte-og which allows to write svelte components to generate
images. svelte-og uses satori to generate the images.
The quick start guide of svelte-og is really straight forward
and it was really easy to integrate it. We just need an own route
with svelte which returns our images. My file is placed at /api/og/image/[...slug].png/+server.ts. So all my opengraph images
must be requested with an GET request to this path. Here is the implementation
on server side of the request handler.
import { ImageResponse } from '@ethercorps/sveltekit-og';
import type { EntryGenerator, RequestHandler } from './$types';
import Card from '$lib/components/og/Card.svelte';
import { loadProps } from '$lib/server/og';
import { GoogleFont, resolveFonts } from '@ethercorps/sveltekit-og/fonts';
// Define required fonts
const interRegular = new GoogleFont('Inter', {
weight: 400,
name: 'Inter'
});
const interBold = new GoogleFont('Inter', {
weight: 700,
name: 'Inter'
});
const bbhBogleRegular = new GoogleFont('BBH Bogle', {
weight: 400,
name: 'BBH Sans Bogle',
});
export const GET: RequestHandler = async ({ params }) => {
// download all fonts
const resolvedFontOptions = await resolveFonts([interRegular, interBold, bbhBogleRegular]);
const slugs = params.slug.split('/');
// load properties for the requested image based on extracted slug
const props = await loadProps(slugs);
return new ImageResponse(
Card,
{
width: 1200,
height: 630,
debug: false,
// caching is not required at my website because i use caddyserver for webhosting
// and I have to configure caching there.
headers: {
'Cache-Control': 'public, max-age=86400'
},
fonts: resolvedFontOptions,
},
props,
);
};I add the Card component here as well as reference. You will notice
I decided to have two variants of the rendered card. One for my
blog and one for my other sites that don’t support dynamic content
at the moment.
I designed the site with tailwindcss as it is supported but sometimes
I was required to use style: tags on the HTML elements because
it did not work with tailwind. It is a bit cumbersome at the first time
to design the component. Because not all errors are printed on the
console if satori is not able to render something. It will just
return an empty response.
I found out if you use static build of the website the error
messages are much better. The next section will describe how
I did this.
But this made it even more complex to create. But still it worked.
Always check with the satori documentation whether a CSS you want
to use is implemented.
And if something does not work with tailwind but satori mentiones
as supported, try to set the style directly with the style: tag.
I realized it works much better. Maybe because tailwind uses css
variables quite often.
<svelte:options css="injected" />
<script lang="ts">
import type { CardProps } from "$lib/og";
const { title, subtitle, tags, variant }: CardProps = $props();
// If redesign think about changing the path with v2 (vX) to prevent that social media sites use cached versions
</script>
<div
class="w-full h-full bg-violet-700 text-white relative flex flex-col items-center font-inter"
>
<div
style:font-family="BBH Sans Bogle"
style:text-shadow={"0px 1px 0px rgb(0 0 0), 0px 1px 1px rgb(0 0 0), 0px 2px 2px rgb(0 0 0)"}
class="absolute bottom-4 flex right-8 text-9xl font-normal tracking-wide"
>
LUKAS KAREL
</div>
{#if variant === "blog"}
<p
style:width="1000px"
style:text-shadow={"0px 1px 0px rgb(0 0 0), 0px 1px 1px rgb(0 0 0), 0px 2px 2px rgb(0 0 0)"}
class="text-7xl font-bold uppercase tracking-wide mb-0 mt-16"
>
{title}
</p>
{#if subtitle}
<p
style:width="1000px"
class="text-3xl font-bold uppercase tracking-wide mt-16"
>
{subtitle}
</p>
{/if}
{#if tags}
<div class="flex mt-auto mb-16 mr-auto ml-12">
{#each tags as tag}
<span
class="px-4 py-1 rounded-xl mx-2 text-2xl bg-teal-300 text-black font-bold tracking-wide lowercase"
><p class="m-0">{tag}</p></span
>
{/each}
</div>
{/if}
{:else}
<div
style:width="700px"
style:text-shadow={"0px 1px 0px rgb(0 0 0), 0px 1px 1px rgb(0 0 0), 0px 2px 2px rgb(0 0 0)"}
class="flex text-7xl font-bold uppercase tracking-wide mb-0 mt-0 flex-col pt-16"
>
<span class="flex mb-8 items-center justify-between">
<p class="m-0 mb-0 inline-block">LEARN</p>
<p class="m-0 text-3xl ms-8 inline">Computer Science</p>
</span>
<span class="flex mb-8 items-center justify-between">
<p class="m-0 mb-0 inline-block">BUILD</p>
<p class="m-0 text-3xl ms-8 inline">PROTOTYPES</p>
</span>
<span class="flex mb-8 mt-0 items-center justify-between">
<p class="m-0 mb-0 inline-block">DEVELOP</p>
<p class="m-0 text-3xl ms-8 inline">SOLUTIONS</p>
</span>
<div class="flex mb-8 mt-8 items-center justify-center">
<p class="m-0 text-3xl text-center">in the Austrian Alps</p>
</div>
</div>
{/if}
</div>Use SvelteKit SSR to create Images in Build Process
The best part is that we are able to generate the images
in our build process for static site hosting. I love it!
We just need to add following lines into /api/image/[...slug].png/+server.ts file.
export const prerender = true;
// The function that tells SvelteKit which URLs to pre-render
export const entries: EntryGenerator = async () => {
const slugs = await loadAvailableSlugs();
return slugs.map(s => ({
slug: s
}))
}loadAvailableSlugs() just returns all paths that an image should be
generated as part of the build process. The more images should be
created, the longer the build process will take. But for my simple site
it is much simpler than host a SvelteKit application and implement caching
to prevent CPU load.
Adapting Caddy to cache images
I just added following section to my Caddyfile to add caching of png
files on my website.
@pngfile {
path_regexp data ^/(.*/)?.*.png$
}
header @pngfile {
Cache-Control "public, max-age=86400"
Expires "86400"
}This should add caching for all png files for one day. So if I change the design of my opengraph images, all people should get the new image at least one day later. And hopefully I will change the design some day in the future. At the moment they are not very good looking. But I wanted to test this without thinking to much about the design.
Lukas
